Equipment Operation

6-41

Introduction

The optional Garmin chart plotter features the latest touchscreen

technology and satellite imagery. It includes software with the latest

U.S. coastal charts and street maps visible on the crisp 5.2 inch WVGA

display.

An automotive mount kit complete with power cord is available from

Garmin or your closest authorized Regal dealer. Once the automotive

mount is installed you can start to enjoy the dual-use advantage of

highway navigation.

As a security enhancement, the head unit is fastened in the vessel

mounting bracket with a special key.

NOTE: As part of the standard software coastal charts include Alaska,

Hawaii, and the Bahamas. Canada and Puerto Rico are integrated into

the street map selections.

Note: The manufacturer recommends that the head unit be removed

after each cruise as direct sunlight could cause battery pack damage.

In the following pages you will ﬁ nd information for installing the battery,

SD card, and powering up the unit. For more detailed information, refer

to the Garmin owner’s manual located in the information packet.

To remove the Garmin chart plotter from the

dash or to remove the battery or change SD

cards a key is required,

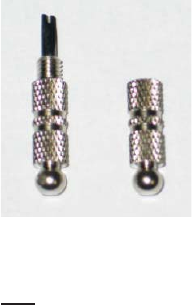

Located in the Regal owner’s packet is a key to

unlock the unit. Unscrew the key assembly to

ﬁ nd the special tool to loosen the locking screw.

Engage the tool into the locking screw and turn

it counterclockwise. Find a safe place to keep

the screw. This will allow the release button to

be depressed and the unit will hinge forward to access the locking latch.

Lift the locking latch to release the unit. Pull the unit up toward you

which will release it completely from the bottom cradle mount.

KEY
